PRODUCT FEATURES

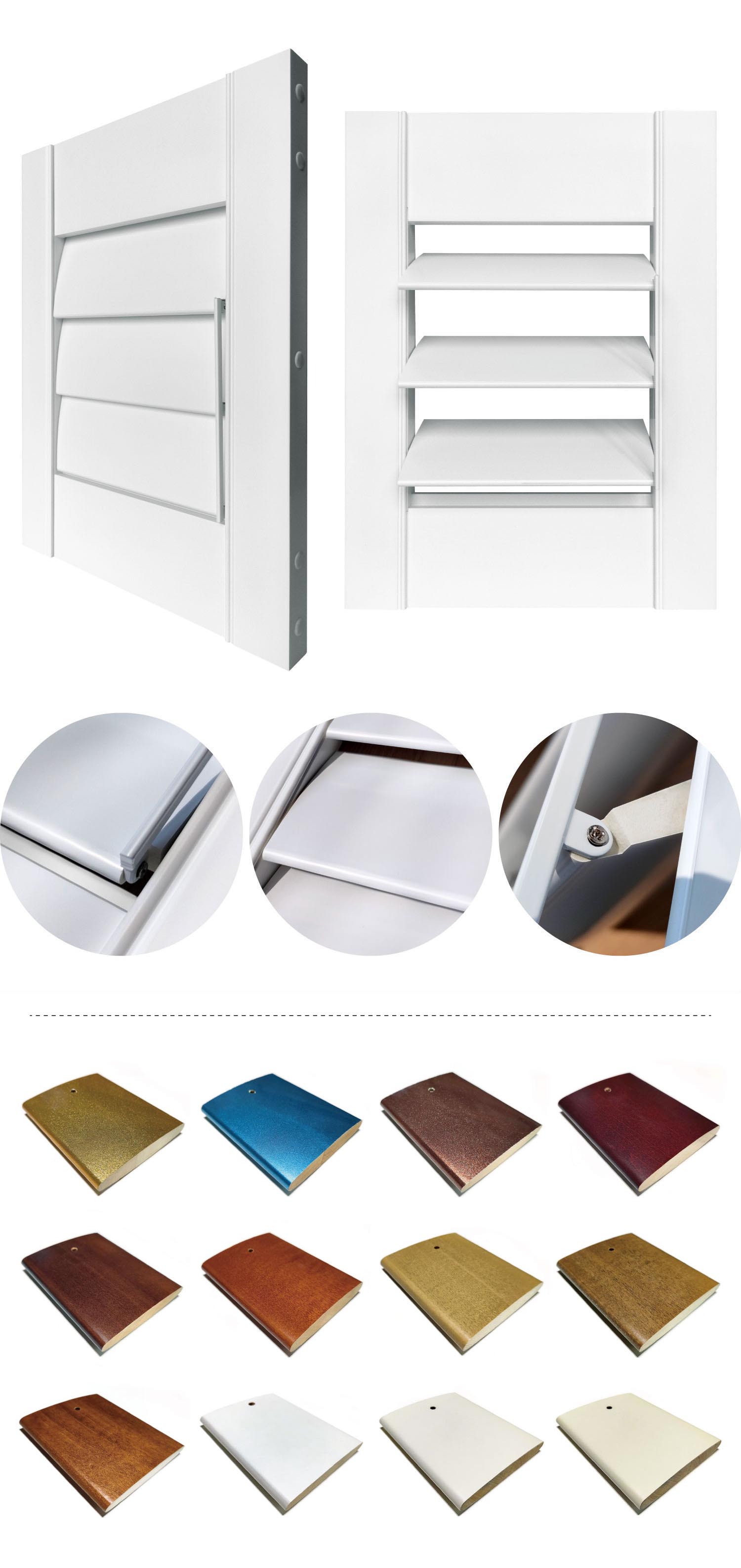

PVC plantation shutters are widely used in homes all over the world. They’re durable, stylish and offer a variety of practical benefits.
If you’re looking to fit your home with PVC plantation shutters, call sales of TopJoy today. Our aluminium-reinforced PVC plantation shutters are specifically designed to withstand everyday wear and tear as well as the weather with strong UV conditions.
Whether you’re in need of indoor shutter blinds or semi-outdoor plantation shutters, TopJoy’s PVC products are the ideal solution. They require very little maintenance and will last for many years.
Additionally, TopJoy’s PVC plantation shutters are hypoallergenic, environmentally friendly, and moisture resistant.
All customized Shutter blinds from TopJoy are made with strict standards. Since TopJoy manufacture the shutters at our own facilities, we can provide customers with affordable, factory-direct prices.
| Standard | Hinged. |
| Shutter Colors | Pure White |
| Louvre Width | 89mm blade ( Foamed PVC with Aluminum core). |
| Louvre Shape | Elliptical only. |
| Louvre Thickness | 11mm. |
| Clearance | 89mm blade-66mm clearance. |
| Hinges | White-Offwhite( Chrome and stainless steel is available on requests). |
| Pivot Hinges | White Only. (Please note when ordering multiple panels with pivot hinges requested on the same side, straight stiles will be supplied). |
| Maximum Panel Height | 2600mm |
| Mid Rail Height | 1) Midrail required for heights greater than 1500mm; 2) Midrails required for heights greater than 2100mm. |
| Hinged Panel | 1) Maximum width: 900mm; 2) Minimum top and bottom rails for panels up to 700mm wide is 76mm; 3) Minimum top and bottom rails for panels greater tham 700mm is 95mm. |
| Double Hinged Panel Maximum Width | 600mm. |
| Tilt Rod Options | Hidden (or Normal type) |
| Stile Profile | Beaded. |
| Stile Width | 50mm. |
| Stile Thickness | 27mm. |
| Rail Thickness | 19mm. |
| Framing Options | Small L frame, Medimum L frame, Medium L Capped, Z frame, 90 degree corner post, 45 degree bay post, Light Block, U channel. |
| Deductions | 1) Inside Mount: Factory will deduct 3mm from width and 4mm from height. 2) Outside Mount: No deductions will be taken. 3)Make Size: If you do not want deductions taken, you must clearly write "Made Size" in the general notes section. |
| T Posts | 1) Single or multiple T-posts are available. All measurements are to be supplied from the left hand side to the middle of the T-post. 2) If T-posts are uneven, then you will need to fill out the " Uneven T-post section" of the order form. |
| Mid Rails | 1) Single or multiple mid rails are available. All measurements are to be supplied from the bottom of your order height to the center of the mid reail. 2) Mid rails are only available in one size- approx. 80mm. 3) Mid rail height can be positioned up or down by a maximum of 20mm by the factory unless ordered as CRITICAL. |
| Multi Panels | Window orders with two or more panels will come STANDARD with D-mould. 1) You must indicate which panel will require the D mould. 2) L-DR shows the right hand panel to have D-mould. 3) LD-R shows the left hand panel to have the D-mould. |
| Tilt Rod Type | Only hidden tilt rod is available.
1) Will be fitted to the rear of the panel on the hinge side unless otherwise specified. |
| Striker Plates/Magnet Catches | 1) When ordering frame or light block, magnets will be attached to the rear of the panel and magnet catches supplied. 2) When ordering direct mount wihthout light block, striker plates will be supplied. |
