PRODUCT FEATURES
While most people are familiar with the traditional shutter hardware, there is a new option available: hidden hinges. They’re ideal for homes with minimalist styles or homeowners who want the clean appearance of shutters without the hardware showing.
Adding hidden hinges to shutters can create a seamless look for any style of interior. The hidden hinge shutters are perfect for modern style interiors and create an elevated look in any room. This makes them great additions to any home, providing a clean, modern look.

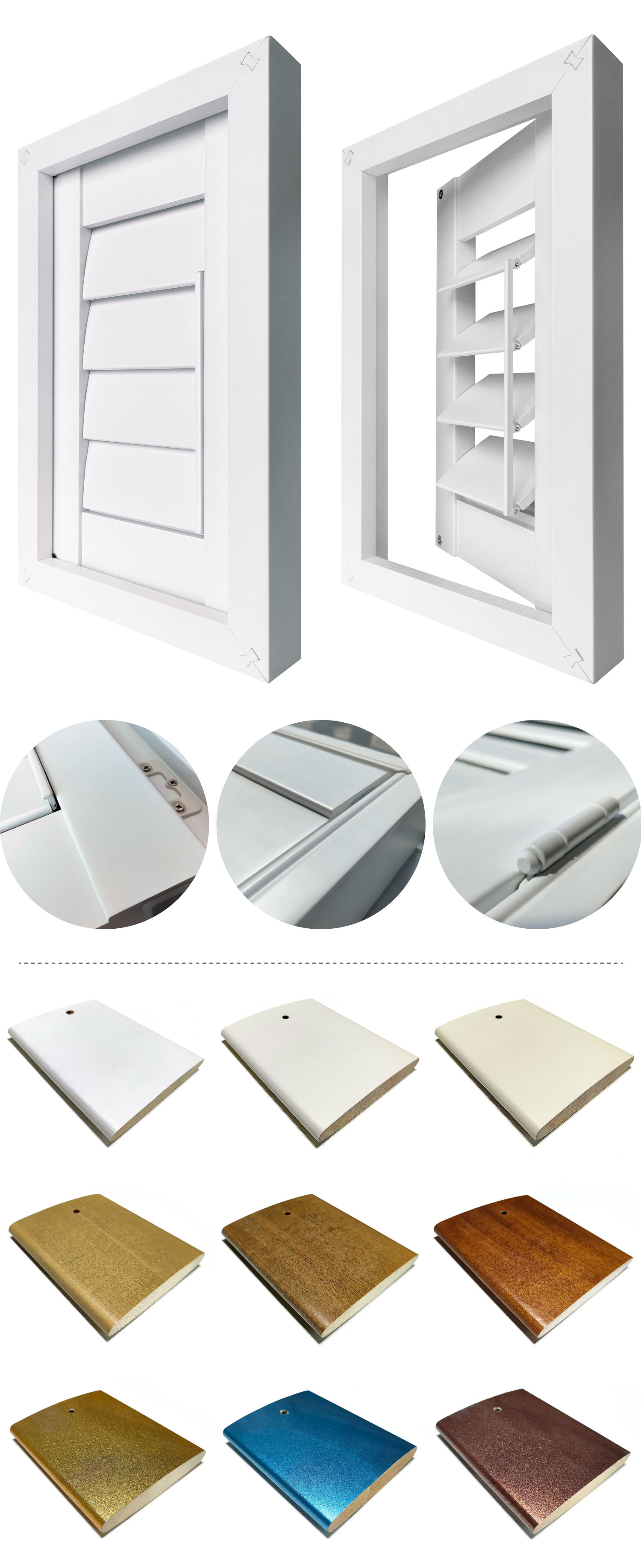

PVC Plantation shutters with hidden hinges and tilt bars are an excellent alternative to traditional plantation shutters. TopJoy will be your favorite company that makes shutters with the invisible hinge.
Plantation shutters with invisible hinges also provide an enhanced aesthetic appeal to any home, adding a modern touch to any room. Their popular features make them a must-have for any homeowner.
Plantation shutters are the perfect window treatment for any home. They’re versatile, come in a variety of styles and colors, and can be customized to fit your needs. But if you’re opting for shutter style, you might consider hidden hinges and tilt shutter options.
Additionally, TopJoy’s PVC plantation shutters are hypoallergenic, environmentally friendly, and moisture resistant.
All customized Shutter blinds from TopJoy are made with strict standards. Since TopJoy manufacture the shutters at our own facilities, we can provide customers with affordable, factory-direct prices.
| Standard | Hinged. |
| Shutter Colors | Pure White |
| Louvre Width | 89mm blade ( Foamed PVC with Aluminum core). |
| Louvre Shape | Elliptical only. |
| Louvre Thickness | 11mm. |
| Clearance | 89mm blade-66mm clearance. |
| Hinges | White-Offwhite( Chrome and stainless steel is available on requests). |
| Pivot Hinges | White Only. (Please note when ordering multiple panels with pivot hinges requested on the same side, straight stiles will be supplied). |
| Maximum Panel Height | 2600mm |
| Mid Rail Height | (1) Midrail required for heights greater than 1500mm; (2) Midrails required for heights greater than 2100mm. |
| Hinged Panel | (1) Maximum width: 900mm; (2) Minimum top and bottom rails for panels up to 700mm wide is 76mm; (3) Minimum top and bottom rails for panels greater tham 700mm is 95mm. |
| Double Hinged Panel Maximum Width | 600mm. |
| Tilt Rod Options | Hidden (or Normal type) |
| Stile Profile | Beaded. |
| Stile Width | 50mm. |
| Stile Thickness | 27mm. |
| Rail Thickness | 19mm. |
| Framing Options | Small L frame, Medimum L frame, Medium L Capped, Z frame, 90 degree corner post, 45 degree bay post, Light Block, U channel. |
| Deductions | (1) Inside Mount: Factory will deduct 3mm from width and 4mm from height. (2) Outside Mount: No deductions will be taken. (3)Make Size: If you do not want deductions taken, you must clearly write "Made Size" in the general notes section. |
| T Posts | (1) Single or multiple T-posts are available. All measurements are to be supplied from the left hand side to the middle of the T-post.(2) If T-posts are uneven, then you will need to fill out the " Uneven T-post section" of the order form. |
| Mid Rails | (1) Single or multiple mid rails are available. All measurements are to be supplied from the bottom of your order height to the center of the mid reail. (2) Mid rails are only available in one size- approx. 80mm. (3) Mid rail height can be positioned up or down by a maximum of 20mm by the factory unless ordered as CRITICAL. |
| Multi Panels | Window orders with two or more panels will come STANDARD with D-mould. (1) You must indicate which panel will require the D-mould. (2) L-DR shows the right hand panel to have D-mould. 3) LD-R shows the left hand panel to have the D-mould. |
| Tilt Rod Type | Only hidden tilt rod is available. (1) Will be fitted to the rear of the panel on the hinge side unless otherwise specified. (2) Shutter panels can have split tilt mechansim, split into 2 or 3 sections without the need for a mid rail. (3) Measurement from the bottom of the panel are required. (4) Tilt rods will automatically be split at approximately 1000mm. |
| Striker Plates/Magnet Catches | (1) When ordering frame or light block, magnets will be attached to the rear of the panel and magnet catches supplied. (2) When ordering direct mount wihthout light block, striker plates will be supplied. |
